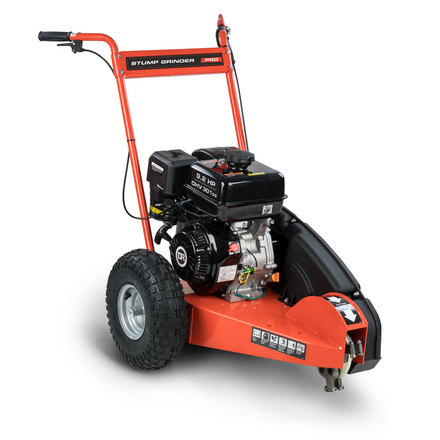

DR Stump Grinder Models (2:29)
Product Summary:
- 8 replaceable tungsten carbide-tipped grinding teeth
- Easy-rolling, knobby tires (15" x 4.75")
- Locking hand brake lets you pivot on one wheel while grinding
- DR OHV engine: 9.2 HP (15.3 ft-lbs gross torque*)
- Dimensions: 51"L x 29"W x 33-39"H (adjustable)
- Weight: 148 lbs
Warranty:
- Engine: 2 years residential, 1 year commercial
- Machine: 2 years residential, 90 days commercial
Demolish any sized stump!
With the power of a world-class 9.2 HP (15.3 ft-lbs gross torque*) DR engine and carbide-tipped cutting teeth, the PRO Stump Grinder has the power to reduce any stump to wood chips. It's the quickest, easiest way to remove eyesores and tripping hazards!
Unlike commonly available grinders that are heavy and cumbersome, the DR Stump Grinder is light, without sacrificing strength and durability. Constructed of 12-gauge steel, it is light enough for anyone to handle.
So, why accept those landscape eyesores on your property? Eliminate stumps the easy way and open up new possibilities: lawn areas; open up fields and meadows; blaze new trails; and remove mowing hazards.
Simple Operation
Position the DR Stump Grinder over a stump, lock one wheel in place with the wheel brake, engage the cutting head, and pivot easily from side to side, shaving off an inch or so with each pass. Reposition the machine and repeat until the entire stump is reduced to a pile of wood chips.
Oversized tires roll over rough terrain
These lugged high-flotation tires make for easy transport and give the machine full support during operation. Large size (15" x 4.75") helps to keep machine elevated over wood chips during operation.
Mining-grade teeth
The cutter head features 8 steel teeth that are tipped with mining-grade tungsten carbide a material 10 times harder than steel and which is used for drilling through bedrock. Spinning at 2800 rpm, these teeth take a remarkable 360 "bites" per second!
Engine
Our DR OHV engine with 9.2 HP (15.3 ft-lbs gross torque*) has the muscle to power through hardwood stumps of any size. Available with choice of manual- or electric starting.
Simple hand controls
Control the wheel brakes and engine throttle right from the handle bars. Lock one wheel in place while you pivot the machine back and forth to grind away a stump. Unlock and reposition as needed, right from your working position.
| Clutch | |
|---|---|
| Clutch | Yes |
| Dimensions | |
|---|---|
| Height | 39" |
| Length | 51" |
| Shipping Dimensions | 54.75"L x 35.5"W x 45.25"H |
| Shipping Weight | 213 lbs |
| Weight | 148 lbs |
| Width | 29" |
| Handlebar Height | Adjustable at 33", 37", 40" |
| Cutting | |
|---|---|
| Number of Teeth | 8 |
| Tooth RPM | 2800 |
| Fuel_System | |
|---|---|
| Fuel Capacity | 3.2 Qrts |
| Fuel Shutoff Value | Yes |
| Engine | |
|---|---|
| Air Filter | Paper |
| Choke/Primer | Choke |
| Cooling Methods | Air |
| Displacement | 301 cc |
| Engine Shaft Diameter | 1" |
| Engine Type | OHV |
| Ft Lbs Torque | *15.3 ft-lbs gross torque (per SAE J1940) |
| Horsepower | 9.2 HP |
| Lubrication | Splash |
| Make | DR |
| Number Of Cylinders | 1 |
| Oil Capacity | 37 oz |
| Oil Filter | No |
| Oil Type | 30W HD |
| Pre Cleaner | Yes |
| Starting Type | Manual |
| General | |
|---|---|
| Assembly | Yes |
| CARB Certified | Yes |
| Optimized Using FEA For Strength | Yes |
| Wheels Tires | |
|---|---|
| Brake | Yes |
| Dimensions | 15" x 4.75" |
| Number of Tires | 2 |
| Tire Size | 15" x 4.75" |
| Tread | Saw Tooth |
| Wheel Brake with Lock | Yes |
| Warranty | |
|---|---|
| Machine Warranty | 2 yrs Residential Use / 90 days Commercial |
| Engine Warranty | 2 yrs Residential Use / 90 days Commercial |
| Material | |
|---|---|
| Cutting Blade Material | Replaceable carbide tipped teeth |
| Frame | 12 gauge |
| Grease Fittings | Yes |
| Handlebar Style | Height adjustable (with tools) 33", 37", 40" |
